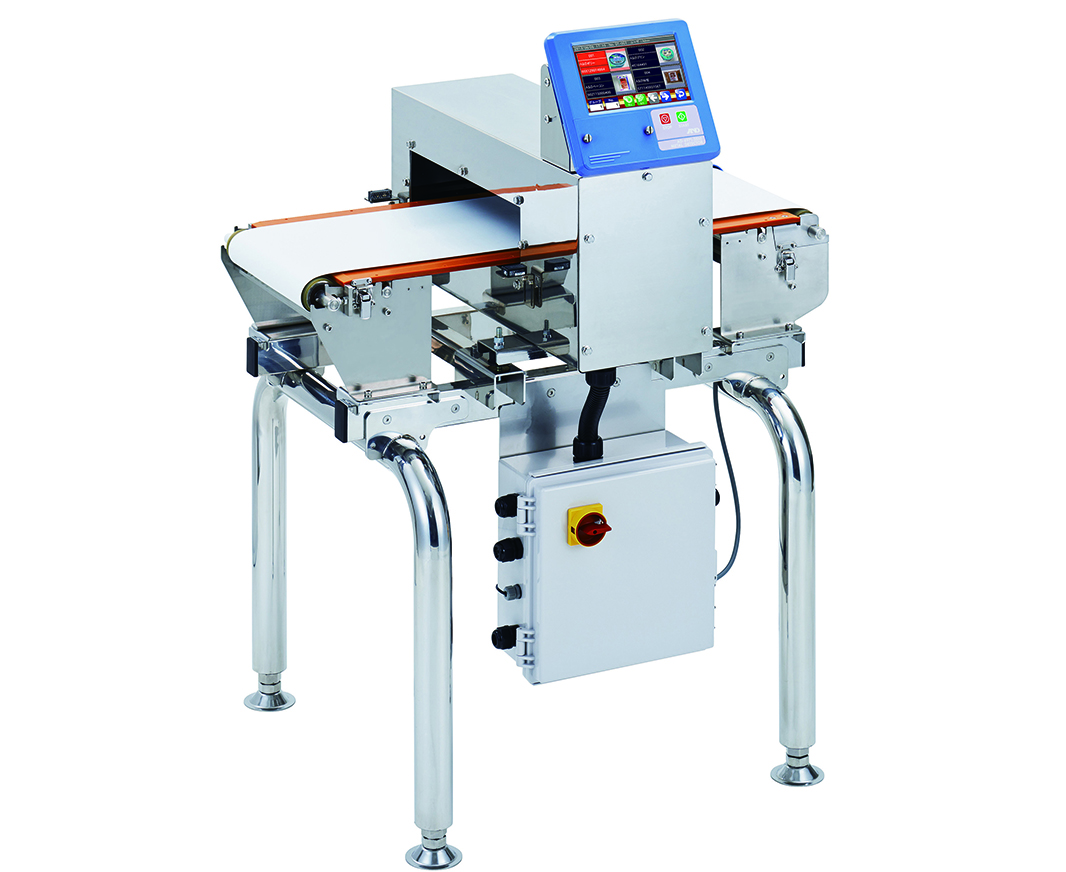

Metal Detector 450/170 aperture
This system is suitable for packages that do not exceed 6” in overall height.
- Aperture Size: 450 mm (W) x 170 mm (H) | 17.7” x 6.6”
DownloadIn facilities with metal machinery and risk of metal contamination, our modular in-line metal detectors can detect ferrous, non ferrous and stainless steel pieces, as well as providing data capture to facilitate your QA reporting.
Features
Our industrial grade in-line metal detection system can detect ferrous, non-ferrous, stainless steel contaminants as small as 0.2 millimeters while also minimizing false rejects. Plus, our modular approach, coupled with our stainless steel construction and wash down rating, allows users to quickly disassemble the machine for easy maintenance and sanitary cleaning.
The AD-4971 Series Metal Detectors are all IP65 rated (dust and water resistant, IP69K optional), which makes them ideal for the food and beverage industry as well as nutraceutical and pharmacuetical markets. Beyond sensitivity, this series offers stability, a user-friendly interface, high repeatability, and automated monitoring.
- Protected from dust and water to IP65 standards. Hygienic design with the entire system washable.
- Suitable for use in HACCP program.
- Automatic sensitivity setting function.
- Easy operation with 7-inch color touch panel.
- Variable belt speed of 10-60m/min.
- Standard Ethernet I/O allowing easy networking via LAN.
- Inspection history function with the ability to record 100 inspection results in the internal memory.
- Capacity can be increased by using USB memory.
- Cleaning and maintenance is simple with a detachable conveyor belt.
Related Video
Food Grade Metal Detector In-line System
Inspection System Inspecting Fresh Produce
Additional Information
With a new consumer focus on organic and fresh foods and exotic ingredients, supermarkets are increasingly turning to small-to-medium sized Australian food manufacturers for their products. While these contracts are lucrative, they also increase the demands on the manufacturers’ processes, necessitating faster production while still maintaining accurate portioning. Accurate metal detection inspection of products is critical: it ensures manufacturers are not supplying contaminated product and putting their customers’ safety at risk, which can lead to fines, loss of contracts,and more.
Display examples
Applications
A&D Metal Detectors can be used in a range of applications, including food and beverage, pharmaceuticals, and consumer packaged goods that do not have metallic packaging.
- Ready made meals
- Prepared foods
- Meat, fish, and poultry
- Bakery products
- Cereals
- Dairy foods
- Confectioneries and snacks
- Fresh produce – fruits and vegetables
- Cosmetics
- Pharmaceuticals and nutraceuticals
-
-
Model AD-4971-4517 Aperture size Width: 450mm
Height: 170mm
Pass Height: 150mmConveyor belt width 350mm Conveyor belt length 800mm Transport medium Urethane belt Conveyor belt speed 10 – 60m / min IP Rating IP65 Display 7-inch touch panel colour display 2D graph display ✔ Menu with graphic display ✔ Audio guidance for operation ✔ Supports Modbus ✔ FTP server function ✔ History can be recorded in USB memory ✔ Accessibility to I/O box ✔ Maintenance Direct drive motor, quick lock conveyor assembly, continuous belt PLC interface (standard feature) Modbus RTU/Modbus TCP, FTP server function (LAN), External input Non-voltage contact input 4 points External output Relay output 8 points Conveyor load capacity 6kg -
