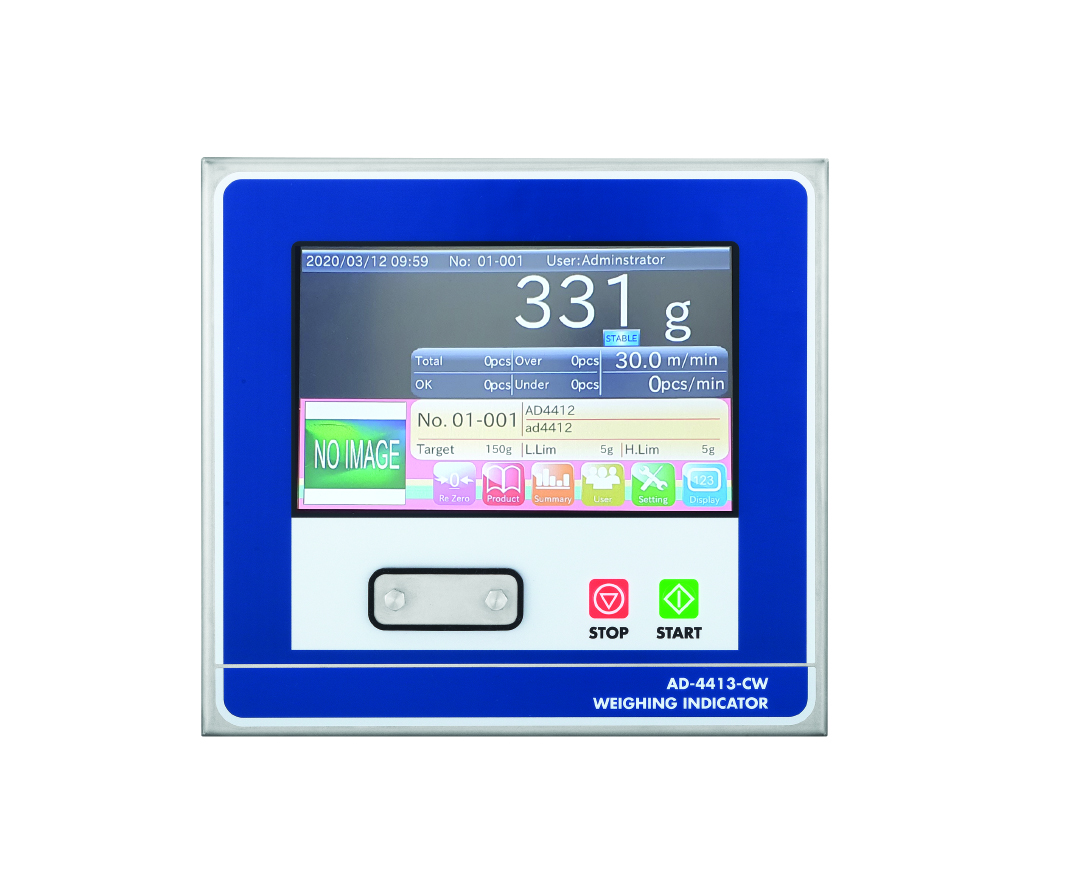

AD4413-CW Touch Panel Checkweighing Indicator
AD4413-CW Touch Panel Checkweighing Indicator
AD4413-CW Touch Panel Checkweighing Indicator

AD4413-CW Touch Panel Checkweighing Indicator

Adding to our inspection system range, is our new high functionality touch panel checkweighing indicator that’s been specially designed to weigh, classify and segregate products based on weight. Its Japanese design provides high-level performance, accuracy and reliability, making it easily adaptable to existing systems. This indicator can store up to 1000 registered items, as well as provide key summary reports such as weighing history, operational history and more.

Enquire Now

Product Brochure

Download Download AD-4413-CW Touch Panel Indicator
Download Download AD-4413-CW Indicator Manual

Our AD-4413-CW is easy to incorporate into your existing systems with three types of weighing modes: Static weighing, Passing, Stopping.

Enquire about our AD-4413-CW Indicator today.

Features

  • Feedback control
  • Reports for operational history, weighing history, histogram, control charts, and summary reports.
  • Display various data on smartphones and tablets over wireless LAN during measurement.
  • Easy setting restoration using a USB Flash Drive.
  • Save data to a USB Flash Drive and import it to personal computer.
  • Dust/water protection for the IP65 display when mounted on a panel.
  • Product Enquiry
  • Specification
  • Help & FAQ

  • Send us your enquiry

    NB: Thank you for your enquiry. We will endeavour to respond to enquiries in a timely matter, however due to increased security measures, it may take longer for us to respond to email accounts such as gmail, yahoo, hotmail (which may take up to 72 hours).

    Please fill in your details below

    * Required field
  • Model AD-4413-CW
    Input sensitivity Over 0.15µV/d (d=minimum division)
    Zero adjustment range –35mV to +35mV (–7mV/V to +7mV/V)
    Load cell excitation DC 5V 60mA up to 4 load cells (350Ω) Remote sensing function included
    Temperature coefficients Zero: ±0.02µV/˚C (Typ.), Span: ±3ppm/˚C (Typ.)
    Nonlinearity 0.005% of F.S.
    Sampling Rate 4000 times per second
    A/D Resolution Approx. 16,000,000
    Display 7” color TFT LCD with touch panel
    Registered Items 1000
    Operating temperature −10˚C to 50˚C
    Operating Humidity 85% RH or less (no condensation)
    Number of product registration 1,000 items  (10 groups x 100 items)
    Communication interface RS-232C| RS-485| Wireless LAN| USB
    Control I/O DC40V 50mA
    Power supply for photo sensor 12V 250mA
    Dust/Water resistence rating IP65 when mounted
    External Dimensions Width : 214mm / Height: 196 mm / Depth: 191.8mm

  • Where can I purchase this equipment?

    A&D Australiasia has a nation wide dealer network with outlets in all capital cities and in most regional locations. Call Toll Free 1800 241 434 for the location of your nearest dealer.

    My product requires service/repair, how do I arrange this?

    Contact the A&D Australiasia Service department on 08 8301 8120 or at [email protected] and they can advise on and coordinate your service requirement.
